ET510 5G CPE
The ET510 is a highly advanced 5G indoor wireless surfing product solution designed to meet the needs of 802.11b/g/n/ac high-speed Wi-Fi access for integrated data and residential, enterprise and enterprise users. It offers a wide range of services and provides high data throughput and networking capabilities for customers who need easy broadband access, hotspot Wi-Fi connectivity.
- Function
- Specification
- Typic application
1. General
ET510 is a highly advanced 5G indoor multi-service product solution specifically designed to meet integrated data, and 802.11b/g/n/ac High speed Wi-Fi access needs for residential, business and enterprise users. It enables wide service coverage and provides high data throughput and networking features to customers who needs easy broadband access, hot-spot Wi-Fi connectivity.
2. Feature
• 5G Support both NSA and SA modes
5G Router support both NSA and SA mode on the 5G network, worldwide applications.
• Gigabit Ethernet port
The router supports 2 Gigabit Ethernet ports, 1 WAN and 1 LAN interfaces to ensure high-speed data transmission requirements under 4G cellular networks.
• VPN private network access in
Router support PPTP, L2TP and other protocol virtual private network access in, it also supports tunnel technology, encryption, key management, and user identity authentication, guarantee the data transmission security
3. Specification
Basic
• Built-in high gain 5G Sub-6G antenna
• Supports IEEE802.11n/802.11ac with a maximum speed of 2.45Ghz 300Mbps / 5.8Ghz 867Mbps
• Support VPDN and Private APN
• Support VPN Client (PPTP, L2TP)
• Firewall and NAT
• Support IP packet/domain/Mac address filtering
• EMC Design
5G
• 5G NR: n1/n28/n41/n77/n78/n79
• LTE: B1/B3/B5/B28/B34/B38/B39/B40/B41
• WCDMA: B1/B5/B8
• Support 5G NR Sub-6G Bands
• Support LTE cat 13
• Carrier Aggregation: DL: 2CA, UL: 2CA
• Support both NSA and SA modes
• Worldwide 5G and LTE-A coverage
• Support 5G network automatic dialing, APN adaptive dialing
• LED display the 5G network status
• Support 5G network link self-detection and self-maintenance mechanism, abnormal fast automatic recovery WiFi
• Peak data rate: 5G: 2.45Gbps DL/ 1.25Gbps UL, LTE: 300Mbps DL/ 150Mbps UL
WiFi
• Standard: IEEE 802.11b/g/n/ac
• Support AP function, extended support Wi-Fi client, WDS Bridge
• Support WEP, WPA/WPA2 Personal/Enterprise, TKIP/AES and other authentication encryption
• Supports both 2.45Ghz 802.11 b/g/n and 5.8Ghz 802.11ac, with a maximum speed of 2.45Ghz 300Mbps / 5.8Ghz 867Mbps
Interface
• 6× 5G/4G LTE FPC 5dbi internal antenna
• 1× 2.45Ghz WiFi FPC 5dbi internal antenna
• 1× 5.8Ghz WiFi FPC 5dbi internal antenna
• 1× SIM card slot

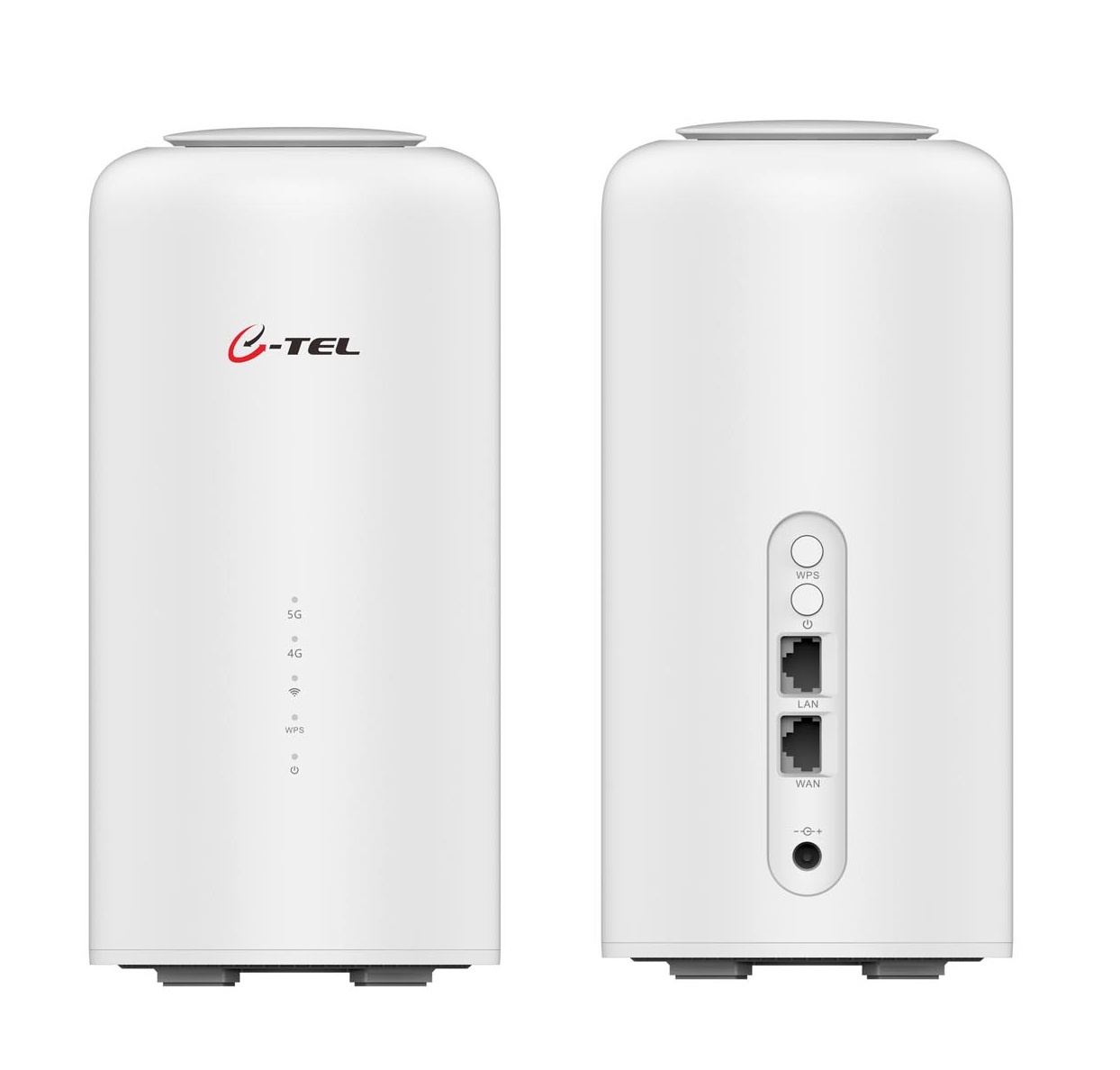

• 2× RJ45 Gigabit Ethernet ports: MDI/MDIX Adaptive, 1×LAN, 1×WAN
Power adapter
• Voltage: +12VDC
• Power consumption
Normal: 800mA@+12VDC
Idle: 300mA@+12VDC
Others

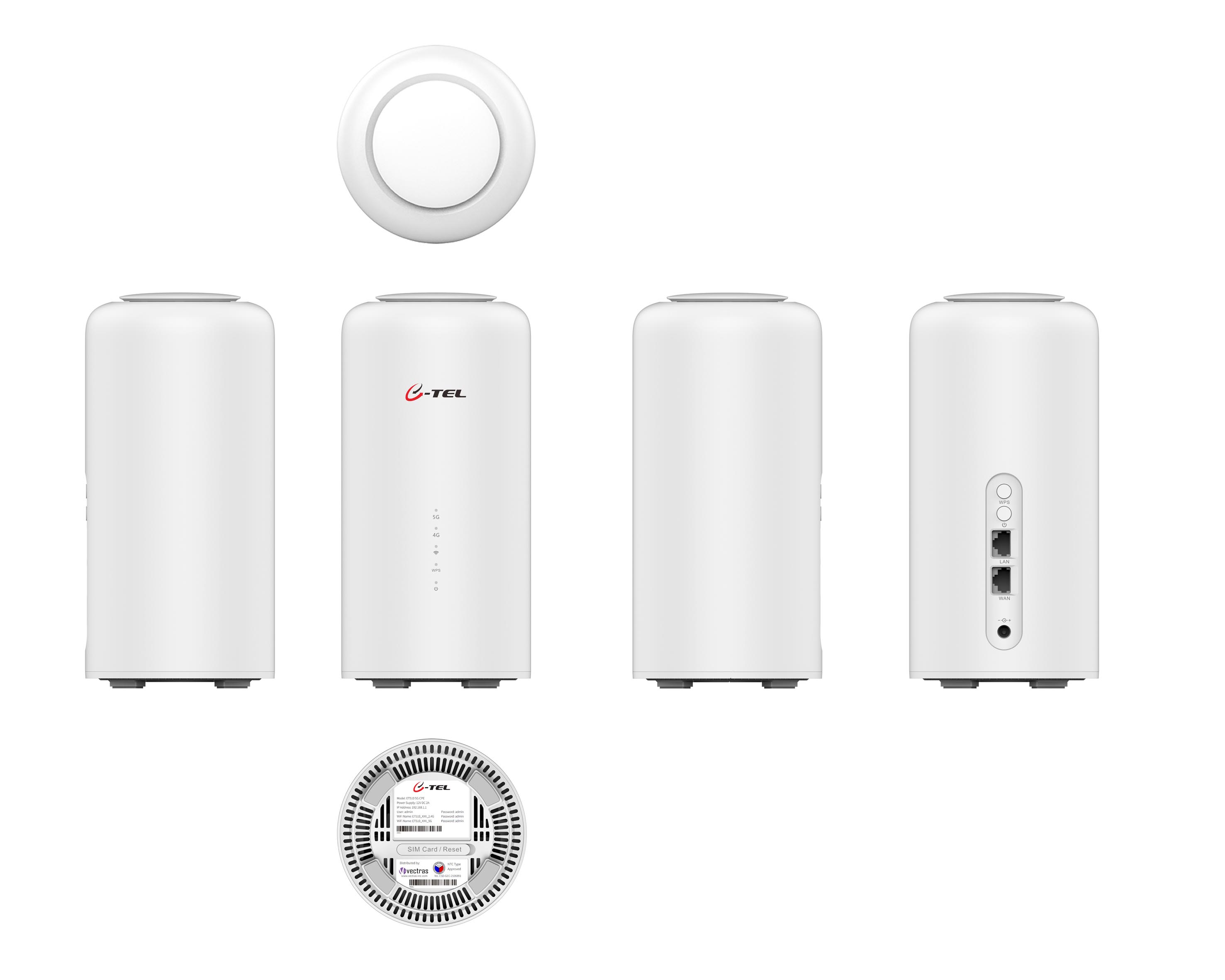

• Mechanical: 215mm(High) x 105mm(Diameter)
• Operation temperature: -20~+60ºC
• Store temperature: -20~+85ºC
• Related humidity: <95%(non-condensing)
