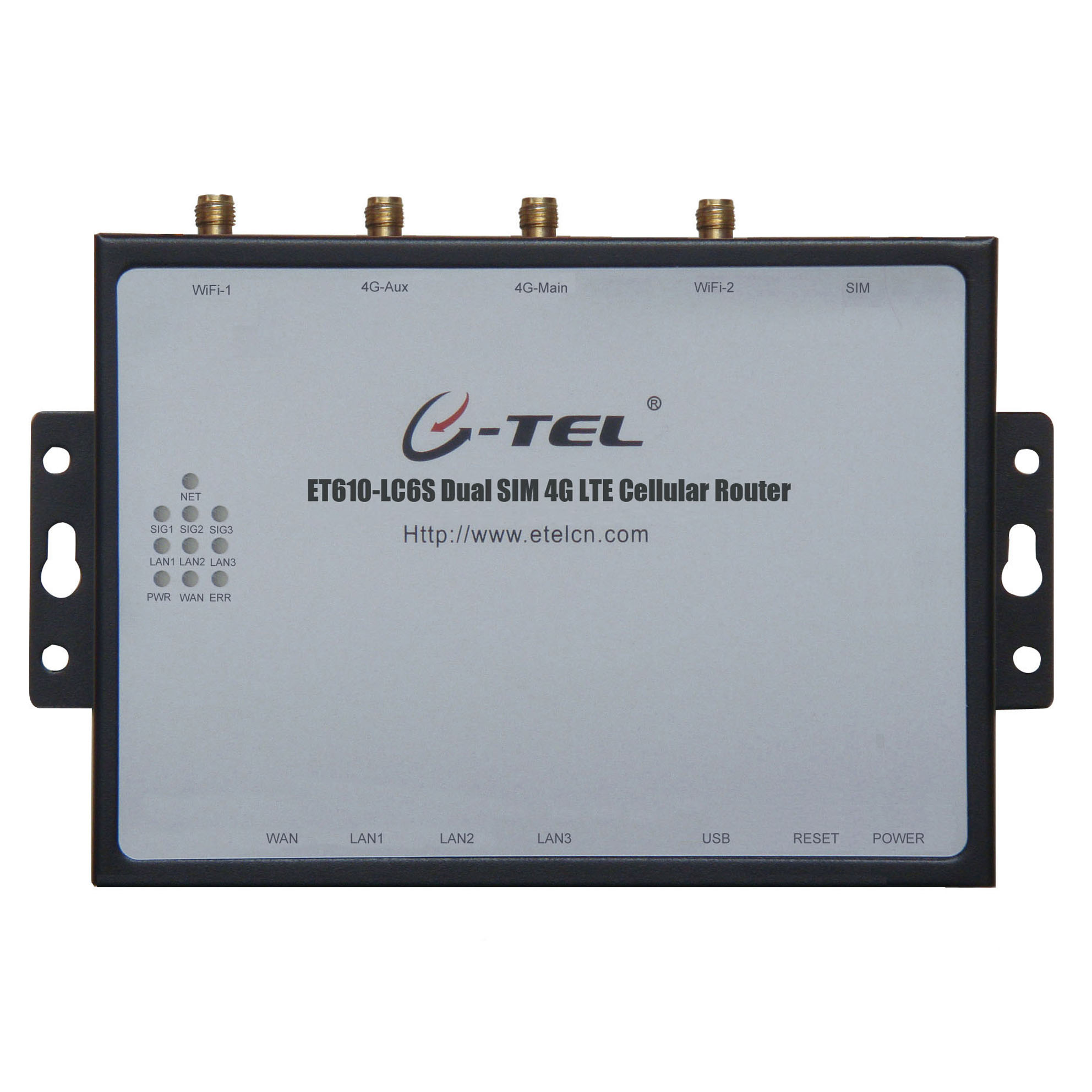

ET610-LC6S-DS 4G LTE CAT6 Dual SIM Cellular Router
Dual SIM Slot; 4G/Wifi Dual Antenna deisgn; Backup between WAN and Cellular; Support IP camera for remote monitor; LCP,ICMP Data traffic link detection; 4 Ethernet ports Support VPN, L2TP, PPTP data tunnel; Industrial Low power consumption design;
- Function
- Specification
- Typic application
1. General
ET610-LC6S-DS 4G LTE CAT Dual SIM industrial cellular router is a 4G Cat 6 LTE router terminal device which based on 2/3/4G WCDMA/HSPA+/FDD-LTE, EV-DO, TD-SCDMA/TD-HSPA+/TD-LTE wireless network, provides fast and stab network for end user. It's widely used in financial networking, security monitoring, water monitoring, smart grid, environmental monitoring, advertising, industrial control, weather monitoring, instrumentation and other industries.
ET610-LC6S 4G LTE Industrial router is specialize in the field of industrial control, which based on 4G LTE technology, it using high-performance processor and embedded OS system, industrial grade material design, suitable for high temperature, humidity, vibration, electromagnetic interference and other harsh environment, it also supports APN/VPDN network access, multiple encryption, mutual backup to guarantee the data transmission security.
2. Feature
• Dual SIM design
ET610-LC6S-DS Router supports Dual SIM Slot, it provides fail over and backup work mode.
• Industrial Design, 7×24h Stable operation
ET610-LC6S 4G LTE Industrial router is industrial design which built-in watchdog chipset to ensure the system work continuously, Watchdog monitoring the 4G LTE module and CPU all the time, if the module or CPU does not response for long time, system will restart automatically. It is very suitable for long-term continuous work applications.
• VPN private network access in
Router support PPTP, L2TP and other protocol virtual private network access in, it also supports tunnel technology, encryption, key management, and user identity authentication, guarantee the data transmission security
• Link detection
Router supports multiple way for link detection, include LCP detection, ICMP detection, flow detection and heartbeat detection, ensure the 4G network connect well.
• IP Video surveillance
4G LTE network provide broad bandwidth, it can be used for video data transmission, just connect IP Camera/DVR, we can remote watch the real-time video in any place.
3. Specification
Basic
• Support VPDN and private APN
• Support on-demand dialing, including timing online/offline, trigger online and link idle offline
• Built in watchdog chipset, WDT
• Failover or Backup between WAN and Cellular
• Support customized firmware and hardware, ODM
• Firewall and NAT
• Support DMZ host
• Support Dynamic DNS
• Support UPnP
• Support VPN Client (PPTP, L2TP, IPSec, GRE)
• Support FOTA update firmware over air
• Support Timing Reboot
• Support Cloud platform
• LCP/ICMP/flow/heartbeat link detection, ensure link connection
• Support IP packet/domain/Mac address filtering
• EMC Design
4G LTE
• Support FDD/TDD LTE CAT6 with CA and MIMO
• LTE-FDD: B1/B3/B5/B7/B8/B20/B28
• LTE-TDD: B38/B40/B41
• 2 × CA: B1 + B1/B3/B5/B8/B20/B28;
B3 + B3/B5/B7/B8/B20/B28;
B7 + B5/B7/B8/B20/B28;
B38 + B38; B40 + B40; B41 + B41
• WCDMA: B1/B5/B8
• View network status through the indicator light
• Support 4G network automatic dialing, APN adaptive dialing
• Support 4G network link self-detection and self-maintenance mechanism, abnormal fast automatic recovery
WiFi
• Standard: IEEE 802.11b/g/n
• Optional for 802.11ac
• Support AP function, extended support Wi-Fi client, WDS Bridge
• Support WEP, WPA/WPA2 Personal/Enterprise, TKIP/AES and other authentication encryption
Interface
• 2× 3G/4G antenna interface: 50ohm/SMA-K Female
• 2× 2.45G WiFi antenna interface: 50ohm/SMA-K Female
• 2× SIM card slot

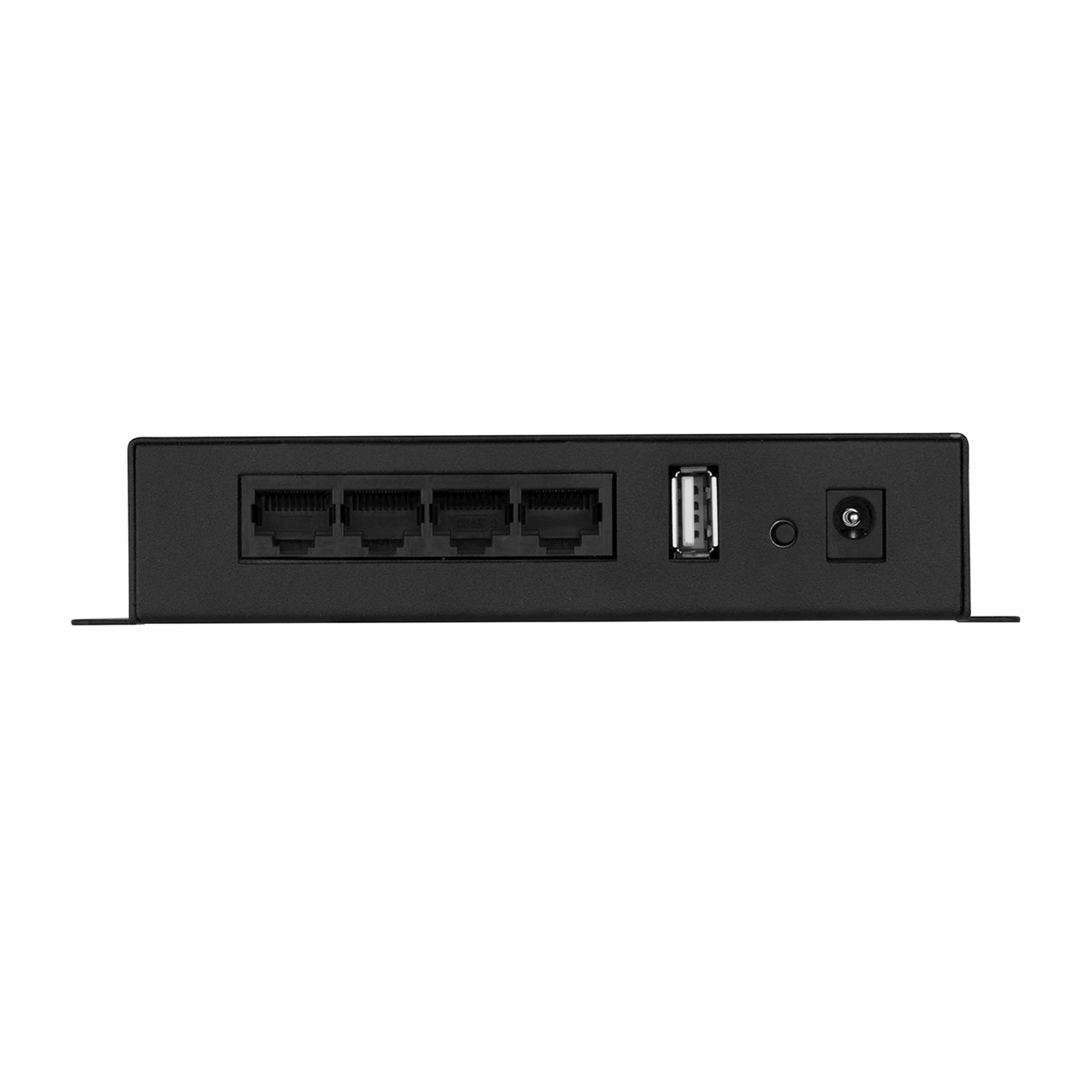

• 4× RJ45 Ethernet interface: 10/100Mb, 3×LAN, 1×WAN
Power adapter
• Voltage: +7.5~32VDC (Standard +12VDC)
• Power consumption
Normal: 280mA@+12VDC
Idle: 100mA@+12VDC
Others
• Mechanical: 116x155x30mm (not include antenna)
• Weight: 370g
• Operation temperature: -30~+70ºC
• Store temperature: -40~+85ºC
• Related humidity: <95%(non-condensing)
4. Applications
Transportation
• Vehicle video surveillance
• Fleet tracking and management
• Remote management of intelligent charging pile
Finance
• ATM, POS machines wireless networking
• Bank office wireless networking
• Vehicle bank service
• Vending machine wireless network
• Smart express cabinet, advertising machine, query machines, queuing machines, coupons and other self-help terminal printer wireless networking
Security
• Video Surveillance Solutions
• Remote access control
• Remote Office Solution
Utility
• Water / electricity / coal automatic payment terminal networking
• Bicycle rental wireless networking
• Digital signage / advertising machine wireless networking
Other
• Remote Access Solution
• Remote device control
