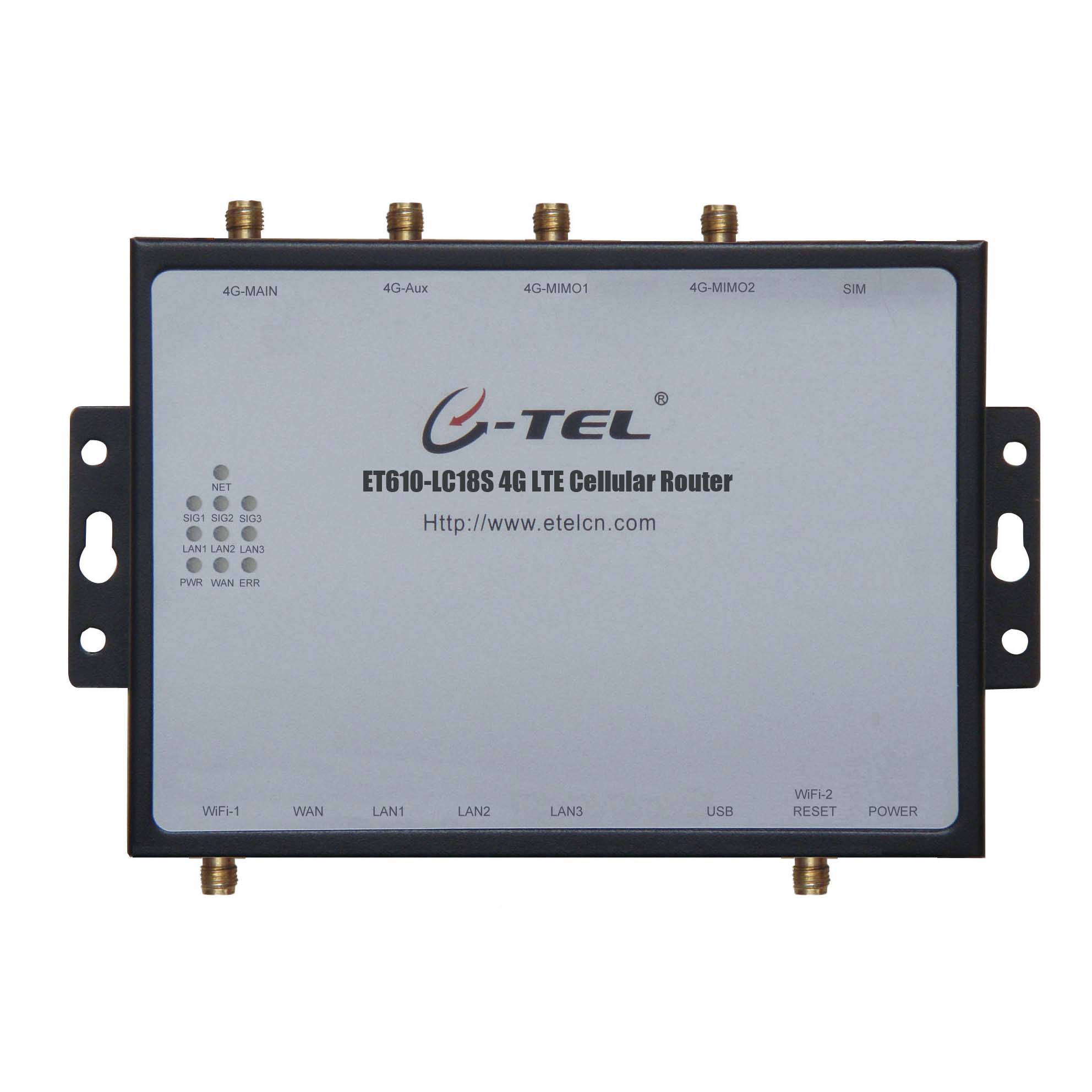

ET610-LC18S 4G LTE Industrial Cellular Router
4G LTE Cat 18 Module; Support LTE 4G Carrier Aggregation; Support IP camera for remote monitor; LCP,ICMP,Data traffic link detection; Provide RS232 port for RTU, PLC; Support VPN, L2TP, PPTP data tunnel; Industrial Low power consumption;
- Function
- Specification
- Typic application
1. General
ET610-LC18S 4G LTE industrial cellular router is a 4G Cat 18 LTE router terminal device which based on 2/3/4G WCDMA/HSPA+/FDD-LTE, EV-DO, TD-SCDMA/TD-HSPA+/TD-LTE wireless network, provides fast and stab network for end user. It's widely used in vehicle WiFi, bus WiFi, financial networking, security monitoring, water monitoring, smart grid, environmental monitoring, advertising, industrial control, weather monitoring, instrumentation and other industries.
ET610-LC18S 4G LTE Industrial router is specialize in the field of industrial control, which based on 4G LTE technology, it using high-performance processor and embedded OS system, industrial grade material design, suitable for high temperature, humidity, vibration, electromagnetic interference and other harsh environment, it also supports APN/VPDN network access, multiple encryption, mutual backup to guarantee the data transmission security.
2. Feature
• Industrial Design, 7×24h Stable operation
ET610-LC18S 4G LTE Industrial router is industrial design which built-in watchdog chipset to ensure the system work continuously, Watchdog monitoring the 4G LTE module and CPU all the time, if the module or CPU does not response for long time, system will restart automatically. It is very suitable for long-term continuous work applications.
• Transparent data transmission
4G LTE Router provides full transparent data transmission channel through RS232 interface it uses for connect different types of PLC, RTU which extend the scope of router application, and better services for users.
• VPN private network access in
Router support PPTP, L2TP and other protocol virtual private network access in, it also supports tunnel technology, encryption, key management and user identity authentication, guarantee the data transmission security
• Multiple WiFi work mode
Router supports multiple WiFi work mode, such as AP mode, station mode, repeater mode.
• Link detection
Router supports multiple way for link detection, include LCP detection, ICMP detection, flow detection and heartbeat detection, ensure the 4G network connect well.
• Support data trigger online, idle offline
When there is no data transmission, router will automatically offline the 4G LTE network; when there is data request transfer, router will online 4G LTE network immediately. it is maximum save the data flow.
• IP Video surveillance
4G LTE network provide broad bandwidth, it can be used for video data transmission, just connect IP Camera/DVR, we can remote watch the real-time video in any place.
• Failover or Backup between WAN and Cellular
4G industrial LTE router supports wired and wireless network backup each other, when the 4G LTE network fault, router can be automatically switch to WAN or WiFi interface for data transmission; when the wired WAN interface fault, router can be automatically switch to 4G LTE interface for data transmission.
• Dual antenna design
Router 4G LTE part using 4 antenna Main / AUX, MIMO1, MIMO2 design, WiFi 2.4Ghz also uses dual antenna design, total 6 antennas to ensure signal sensitivity.
3. Specification
Basic
• Support VPDN and private APN
• Support on-demand dialing, including timing online/offline, trigger online and link idle offline
• Built in watchdog chipset, WDT
• Failover or Backup between WAN and Cellular
• Support customized firmware and hardware, ODM
• Firewall and NAT
• Support DMZ host
• Support Dynamic DNS
• Support UPnP
• Support VPN Client (PPTP, L2TP, IPSec, GRE)
• Support FOTA update firmware over air
• Support Timing Reboot
• Support Cloud platform
• Support Wifi User Bandwidth limit
• Support WiFi User number limit
• LCP/ICMP/flow/heartbeat link detection, ensure link connection
• Support IP packet/domain/Mac address filtering
• EMC Design
4G LTE
• Support FDD/TDD LTE CAT18 with CA and MIMO
• LTE-FDD: B1/B3/B5/B7/B8/B20/B28
• LTE-TDD: B38/B40/B41
• LTE Carrier Aggregation: 2xCA (DL/UL), 3xCA (DL), 4xCA (DL), 5xCA (DL)
• WCDMA: B1/B3/B5/B8
• View network status through the indicator light
• Support 4G network automatic dialing, APN adaptive dialing
• Support 4G network link self-detection and self-maintenance mechanism, abnormal fast automatic recovery WiFi
WiFi
• Standard: IEEE 802.11b/g/n
• Support AP function, extended support Wi-Fi client, WDS Bridge
• Support WEP, WPA/WPA2 Personal/Enterprise, TKIP/AES and other authentication encryption
Interface
• 4× 3G/4G antenna interface: 50ohm/SMA-K Female
• 2× 2.45G WiFi antenna interface: 50ohm/SMA-K Female
• 1× SIM card slot
• 1× USB interface: USB2.0
• 4× RJ45 Ethernet interface: 10/100Mb, 3×LAN, 1×WAN
Power adapter
• Voltage: +7.5~32VDC (Standard +12VDC)
• Power consumption
Normal: 280mA@+12VDC
Idle: 100mA@+12VDC
Others
• Mechanical: 116x155x30mm (not include antenna)
• Weight: 370g
• Operation temperature: -30~+70ºC
• Store temperature: -40~+85ºC
• Related humidity: <95%(non-condensing)
4. Applications
Transportation
• Bus WiFi Suffering internet
• Bus 4G/WiFI Advertising
• WiFi on Board
• Vehicle video surveillance
• Fleet tracking and management
• Remote management of intelligent charging pile
Finance
• ATM, POS machines wireless networking
• Bank office wireless networking
• Vehicle bank service
• Vending machine wireless network
• Smart express cabinet, advertising machine, query machines, queuing machines, coupons and other self-help terminal printer wireless networking
Security
• Video Surveillance Solutions
• Remote access control
• Remote Office Solution
Utility
• Water / electricity / coal automatic payment terminal networking
• Bicycle rental wireless networking
• Digital signage / advertising machine wireless networking
Other
• Public area WiFi hotspot
• Remote Access Solution
• Remote device control

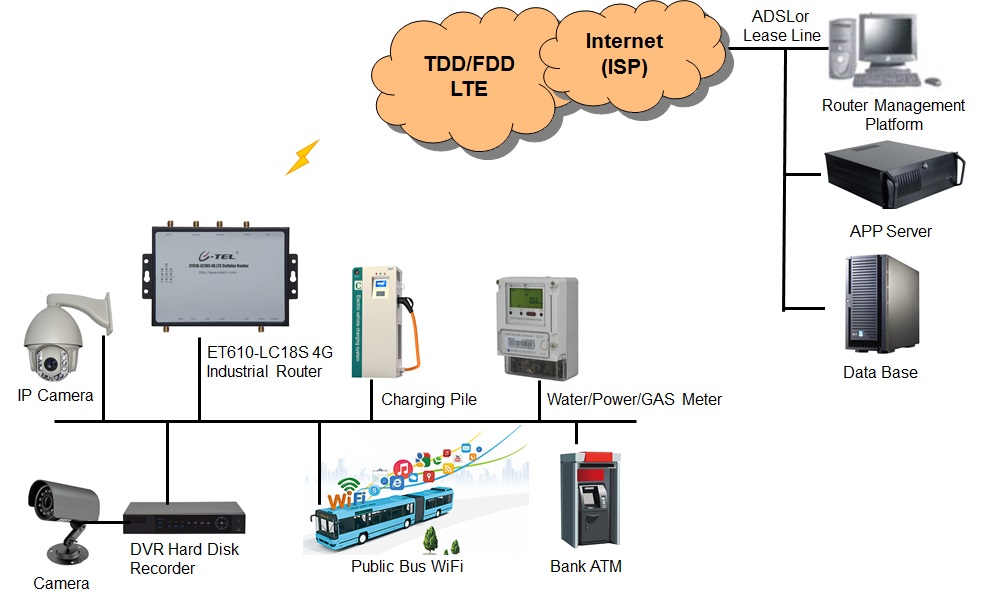

5. Diagram
