ET620-5G01 5G Industrial Cellular Router
Support 5G both NSA and SA modes; Support both 2.45G and 5.8Ghz WiFi; Built-in V510 Chipset; supports 4 Gigabit Ethernet ports; Industrial Design; Support VPN, L2TP, PPTP data tunnel; Support IPV6; Support TR069; Support MQTT IOT Protorol;
- Function
- Specification
- Typic application
1. General
ET620-5G01 5G industrial cellular router is a router terminal device which based on 2/3/4/5G WCDMA/HSPA+/FDD-LTE, EV-DO, TD-SCDMA/TD-HSPA+/TD-LTE, NR wireless network, provides fast and stab network for end user. It's widely used in vehicle WiFi, bus WiFi, financial networking, security monitoring, water monitoring, smart grid, environmental monitoring, advertising, industrial control, weather monitoring, instrumentation, and other industries.
ET620 5G Industrial router is specialize in the field of industrial control, which based on 5G Cellular technology, it using high-performance processor and embedded OS system, industrial grade material design, suitable for high temperature, humidity, vibration, electromagnetic interference and other harsh environment, it also supports APN/VPDN network access, multiple encryptions, mutual backup to guarantee the data transmission security.
2. Feature
• Band Lock
ET620 5G Industrial router support 4G/5G band lock function, customer can lock the assign band for more fast speed of internet.
• Industrial Design, 7×24h Stable operation
ET620 5G Industrial router is industrial design which built-in watchdog chipset to ensure the system work continuously, Watchdog monitoring the 5G Cellular module and CPU all the time, if the module or CPU does not response for long time, system will restart automatically. It is very suitable for long-term continuous work applications.
• VPN private network access in
Router support PPTP, L2TP and other protocol virtual private network access in, it also supports tunnel technology, encryption, key management, and user identity authentication, guarantee the data transmission security
• Link detection
Router supports multiple way for link detection, include LCP detection, ICMP detection, flow detection and heartbeat detection, ensure the 5G network connect well.
• IP Video surveillance
5G network provide broad bandwidth, it can be used for video data transmission, just connect IP Camera/DVR, we can remote watch the real-time video in any place.
• Multi-antenna design
Router 5G part using Multi-antenna design, WiFi 2.4Ghz and 5.8Ghz also uses dual antenna design, total 8 antennas to ensure signal sensitivity.
• Gigabit Ethernet port
The router supports 5 Gigabit Ethernet ports, 1 WAN and 4 LAN interfaces to ensure high-speed data transmission requirements under 5G cellular networks.
• 5G Support both NSA and SA modes
5G Router support both NSA and SA mode on the 5G network, worldwide applications.
3. Specification
Basic
• Support VPDN and private APN
• Support VPN Client (PPTP, L2TP)
• LCP/ICMP/flow/heartbeat link detection, ensure link connection
• Built in watchdog chipset, WDT
• Failover or Backup between WAN and Cellular
• Supports IEEE802.11n/802.11ac with a maximum speed of 2.45Ghz 300Mbps / 5.8Ghz 867Mbps
• Firewall and NAT
• Support DMZ host
• Support IPV6
• Support WiFi User Bandwidth limit
• Support FOTA update firmware over air
• Support IP packet/domain/Mac address filtering
• Support customized firmware and hardware, ODM
• EMC Design
5G
• 5G NR: n1//28/n41/n77/n78/n79
• LTE: B1/B3/B5/B28/B34/B38/B39/B40/B41
• WCDMA: B1/B5
• Support 5G NR Sub-6G Bands
• Support LTE cat 13
• Carrier Aggregation: DL: 2CA, UL: 2CA
• Support both NSA and SA modes
• Worldwide 5G and LTE-A coverage
• Support 5G network automatic dialing, APN adaptive dialing
• LED display the 5G network status
• Support 5G network link self-detection and self-maintenance mechanism, abnormal fast automatic recovery WiFi
• Peak data rate: 5G: 2.45Gbps DL/ 1.25Gbps UL, LTE: 300Mbps DL/ 150Mbps UL
WiFi
• Standard: IEEE 802.11b/g/n/ac
• Support AP function, extended support Wi-Fi client, WDS Bridge
• Support WEP, WPA/WPA2 Personal/Enterprise, TKIP/AES and other authentication encryption
• Supports both 2.45Ghz 802.11 b/g/n and 5.8Ghz 802.11ac, with a maximum speed of 2.45Ghz 300Mbps / 5.8Ghz 867Mbps
Interface
• 4× 5G/4G antenna interface: 50ohm/SMA-K Female
• 2× 2.45Ghz WiFi antenna interface: 50ohm/SMA-K Female
• 2× 5.8Ghz WiFi antenna interface: 50ohm/SMA-K Female
• 1× SIM card slot
• 4× RJ45 Gigabit Ethernet ports: MDI/MDIX Adaptive, 3×LAN, 1×WAN
Power adapter
• Voltage: +12VDC
• Power consumption
Normal: 1500mA@+12VDC
Idle: 400mA@+12VDC
Others
• Mechanical: 155x115x30mm (not include antenna)
• Weight: 780g
• Operation temperature: -30~+70ºC
• Store temperature: -40~+85ºC
• Related humidity: <95%(non-condensing)
4. Applications
Transportation
• Bus WiFi Suffering internet
• Bus 5G/WiFI Advertising
• WiFi on Board
• Vehicle video surveillance
• Fleet tracking and management
• Remote management of intelligent charging pile
Finance
• ATM, POS machines wireless networking
• Bank office wireless networking
• Vehicle bank service
• Vending machine wireless network
• Smart express cabinet, advertising machine, query machines, queuing machines, coupons and other self-help terminal printer wireless networking
Security
• Video Surveillance Solutions
• Remote access control
• Remote Office Solution
Utility
• Water / electricity / coal automatic payment terminal networking
• Bicycle rental wireless networking
• Digital signage / advertising machine wireless networking
Other
• Public area WiFi hotspot
• Remote Access Solution
• Remote device control

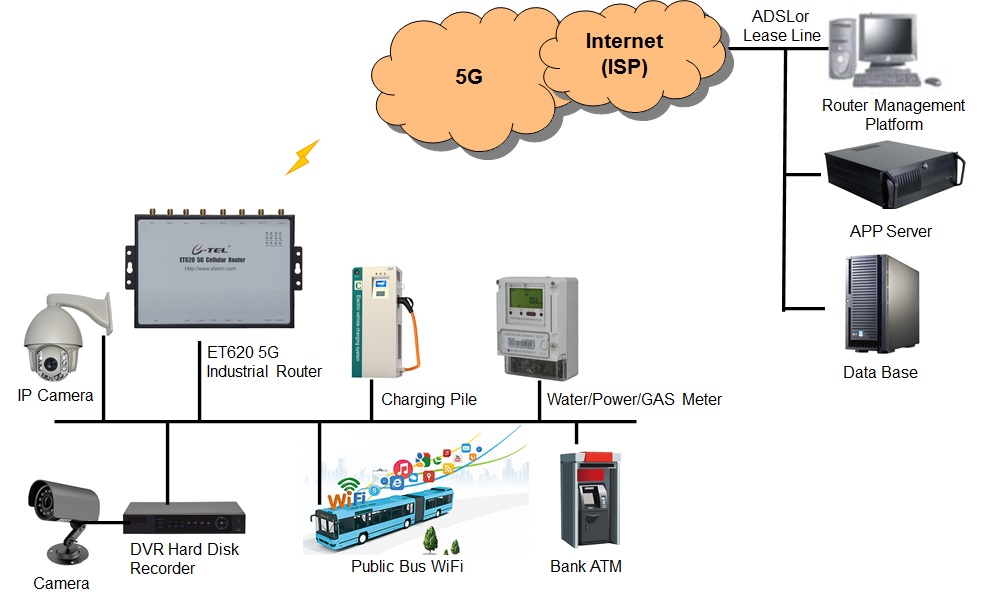

5. Diagram
